Payment

  1. The user is provided with wallet details to which payment must be made.
  2. The user makes a payment in their wallet app and receives a unique transaction number.
  3. Next, the user enters a unique transaction number in the payment window, after which the transaction is activated.
  4. Paykassma sends a postback to the merchant's side.
  5. Funds are credited to the user’s balance on the merchant platform.

Payment window integration (plugin)

Example of a link to open a Esewa Manual payment window:

https://plugin.{URL_сервера}/?
label=label
&currency_code=NPR
&lang=en
&wallet_type=esewa_ml
&custom_transaction_id=custom_transaction_id
&fixed_amount=fixed_amount
&payment_url_success_id=2
&payment_url_pending_id=3
&payment_url_fail_id=1
&success_url=hash
&fail_url=hash
&pending_url=hash


Code Block
wallet_type=esewa_ml
currency_code=NPR
Available languages (lang): en, ne


Info

Pay attention to the description of the parameters payment_url_success_id / payment_url_fail_id/ payment_url_pending_id and success_url / fail_url / pending_url.
To use payment_url_success_id / payment_url_fail_id / payment_url_pending_id you need to send the URLs to Paykassma support and use the received IDs in the parameters.
To use success_url / fail_url / pending_url you must use hashing URLs ( For more details on hashing click here ).

For the description of all the plug-in parameters click here.

API integration

Creating payment

URL: https://api.{server_URL}/api/v1/transaction/create/esewa_ml?secret={pluginapi_secret}

На данном этапе мы предоставляем реквизиты кошелька, на который пользователь должен произвести платеж.

Request method:

POST

Format:
JSON

Parameters:

Name

Type

Required

Max Length

Description

currencystringyes3Currency code.

label

string

yes

190

The unique identifier (ID) of the user who makes the payment.


Code Block
languagephp
themeDJango
titleRequest
{
  "currency": "NPR",
  "label": "eligendi"
}


Code Block
languagephp
themeDJango
titleResponse Success
{
    "status": "ok",
    "params": {
        "eSewa Number": "9831842321",
        "is_check_amount": null
    }
}


Code Block
languagephp
themeDJango
titleResponse Fail
{
    'status': 'fail',
    'message': 'MESSAGE'
}

Activation request

URL: http://api.{server_URL}/api/v1/possible-transaction?secret={pluginapi_secret}

Request method:
POST

Format:
form-data

Parameters:

Name

Type

Required

Max Length

Description

currency_codestringyes3Currency code (NPR).

wallet_type

string

yes

190

esewa_ml
labelstringyes190The unique identifier (ID) of the user who makes the payment.
key1stringyes8Transaction ID received from the use (6-8, буквы и цифр).
screenshotfileyes
Screenshot of the payment from the user.
amountintyes256Payment amount.
custom_transaction_id

string

yes190

The identifier of the transaction in the Client's system. Must be unique.


Code Block
languagephp
themeDJango
titleResponse Success
{
    "status": "success",
    "message": "",
    "code": 20000,
    "data": [],
    "paginate": {
        "offset": 0,
        "total": 1,
        "limit": 1
    }
}


Code Block
languagephp
themeDJango
titleResponse Fail
{
    'status': 'fail',
    'message': 'MESSAGE'
}


Deposit postback

For the general documentation on post backs click here.

Example of a deposit postback for a Esewa Manual

Code Block
languagephp
themeDJango
collapsetrue
{
    "signature": "35e54262246adeafd4694e767557945827339a7f",
    "wallet_type": "esewa_ml",
    "amount": 6000,
    "currency_code": "NPR",
    "label": "7848747947846",
    "converted_amount": {"USD": 4.61,"INR": 380, "EUR": 4.2, "IDR": 69702.53, "MYR": 20.81, "VND": 109100.85, "SGD": 6.15, "THB": 158.07, "NGN": 3549.74, "TRY": 124.18, "AED": 16.92, "CAD": 6.11, "AUD": 6.96, "BDT": 500, "AFN": 392.19, "ALL": 427.25, "AMD": 1778.42, "AOA": 3803.37, "ARS": 1271.54, "AWG": 8.3, "AZN": 7.83, "BAM": 8.2, "BBD": 9.21, "BGN": 8.21, "BHD": 1.74, "BIF": 13046.47, "BMD": 4.61, "BND": 6.15, "BOB": 31.84, "BRL": 21.99, "BSD": 4.61, "BTC": 0.00015943, "BTN": 379, "BWP": 60.54, "BYN": 11.63, "BZD": 9.29, "CDF": 11425.29, "CHF": 4.04, "CLF": 0.14, "CLP": 3878.55, "CNH": 33.06, "CNY": 33.02, "COP": 18082.75, "CRC": 2498.95, "CUC": 4.61, "CUP": 118.58, "CVE": 462.56, "CZK": 100.38, "DJF": 820.28, "DKK": 31.27, "DOP": 259.16, "DZD": 624.77, "EGP": 142.3, "ERN": 69.08, "ETB": 253.82, "FJD": 10.22, "FKP": 3.6, "GBP": 3.6, "GEL": 11.9, "GGP": 3.6, "GHS": 52.22, "GIP": 3.6, "GMD": 276.31, "GNF": 39634.5, "GTQ": 36.22, "GYD": 963.87, "HKD": 35.89, "HNL": 113.34, "HRK": 31.62, "HTG": 628.87, "HUF": 1633.77, "ILS": 16.76, "IMP": 3.6, "IQD": 6035.32, "IRR": 194797.68, "ISK": 605.39, "JEP": 3.6, "JMD": 711.75, "JOD": 3.26, "JPY": 659.33, "KES": 657.15, "KGS": 404.25, "KHR": 19027.89, "KMF": 2061.95, "KPW": 4144.63, "KRW": 5933.82, "KWD": 1.42, "KYD": 3.84, "KZT": 2047.77, "LAK": 89252.61, "LBP": 69151.38, "LKR": 1469.64, "LRD": 858.4, "LSL": 81.95, "LYD": 22.02, "MAD": 45.38, "MDL": 82.35, "MGA": 20777.32, "MKD": 258.57, "MMK": 9674.75, "MNT": 15887.75, "MOP": 36.98, "MRO": 0, "MRU": 175.52, "MUR": 208.15, "MVR": 70.69, "MWK": 4853.1, "MXN": 77.35, "MZN": 293.46, "NAD": 82.25, "NIO": 168.55, "NOK": 47.01, "NPR": 606.4, "NZD": 7.49, "OMR": 1.77, "PAB": 4.61, "PEN": 16.61, "PGK": 16.59, "PHP": 252.72, "PKR": 1324.8, "PLN": 18.6, "PYG": 33513, "QAR": 16.79, "RON": 20.69, "RSD": 492.16, "RUB": 424.19, "RWF": 5413.13, "SAR": 17.28, "SBD": 38.44, "SCR": 61.28, "SDG": 2770, "SEK": 48.85, "SHP": 3.6, "SLL": 96567.61, "SOS": 2623.48, "SRD": 177.86, "SSP": 599.87, "STD": 102610.94, "STN": 102.67, "SVC": 40.31, "SYP": 11570.57, "SZL": 81.89, "TJS": 50.47, "TMT": 16.16, "TND": 14.19, "TOP": 10.82, "TTD": 31.29, "TWD": 145.48, "TZS": 11319.27, "UAH": 170.14, "UGX": 16716.57, "UYU": 173.55, "UZS": 53595.22, "VEF": 0, "VES": 135.74, "VUV": 546.73, "WST": 12.52, "XAF": 2752.15, "XAG": 0.19, "XAU": 0, "XCD": 12.45, "XDR": 3.43, "XOF": 2752.15, "XPD": 0, "XPF": 500.67, "XPT": 0, "YER": 1152.67, "ZAR": 83.54, "ZMW": 87.42, "ZWL": 1482.86, "ETH": 0.00251358, "LTC": 0.05065982, "DOGE": 59.80674641, "DASH": 0.14777208, "BCH": 0.01902045, "ZEC": 0.15475058, "ETC": 0.25289799, "XRP": 6.67674578, "TRX": 59.03020283, "XLM": 31.08030456, "WAVES": 2.42673726, "USDT": 4.60787289, "USDTTRC20": 0, "USDT20": 0},
    "direction": "ingoing",
    "created_datetime": "2023-08-01 13:37:42",
    "access_key": "FQ9jMwrNSkFbyMNqYFf6Ed4xeKmjHK",
    "additional_data": [
        {
            "activated_datetime": "2023-08-01 16:37:16",
            "exchanger_identifier": null,
            "comment": "",
            "amount": "100",
            "currency_code": "NPR",
            "wallet_type": "esewa_ml",
            "stockpiling_id": 963,
            "transaction_id": "5750E9FB",
            "transaction_type": 1,
            "plugin_custom_order_id": null,
            "withdrawal_id": null,
            "withdrawal_status": null,
            "account_number": "",
            "account_name": "",
            "account_email": "",
            "bank_details": {
                "bank_code": "",
                "branch_code": ""
            }
		}
    ]
}


Warning

The Paykassma server is waiting for a response in json {"status": "ok"} response code 200, otherwise, when receiving a different response, Paykassma will forward the postback with a certain frequency.
Repeated postbacks must also be answered with {"status":"ok"} response code 200.

Withdrawals for users

For the general documentation on the withdrawals of funds click here.

Creating withdrawal

URL: https://api.{server_URL}/v2/withdrawal/create

Request method:

POST

Format:
JSON

Parameters:

Name

Type

Required

Description

withdrawal_idstringyes Withdrawal ID, if the parameter is not passed, then the system generates withdrawal _id.
payment_systemstring yesPayment system.
amount

int


required

Additional requirements:

  1. amount >= The value of the set minimum value;
  2. amount <= The value of the set maximumvalue.
currency_codestringyesCurrency code.

label

string

yes

The unique identifier (ID) of the user who makes the payment.

account_numberstring

yes

The ten-digit account number of the customer's user in Esewa.

Validation:

  • Digits: 0-9.

is_test

booleanyes

The is_test parameter possible values:

  • true - if Withdrawal is test;
  • false - if Withdrawal is real.
signaturestringyesSignature generated with private_key.



Code Block
languagephp
themeDJango
titleRequest
{
"withdrawal_id": "45622851451851",
"payment_system": "esewa_ml",
"amount": 20000,
"currency_code": "NPR",
"label": "12519988",
"is_test": true,
"account_number": "9805382784",
"signature": "167d579abb57baf96681146d371b111e213634d0"
}


Code Block
languagephp
themeDJango
titleResponse Success
{
    "status": "ok",
}


Code Block
languagephp
themeDJango
titleResponse Fail
{
    'status': 'fail',
    'message': 'MESSAGE'
}

*If, when trying to create a withdrawal request, the amount of account balances in the currency of the request is less than the total amount of new and still incomplete applications, the error message"Insufficient balance" will be displayed (to configure this functionality, contact the TS Paykassma).

Code Block
languagephp
themeDJango
titleResponse Fail (при недостаточном балансе)
{
    "status": "fail",
    "message": {
        "withdrawals_sum_amount": [
            "Insufficient balance"
        ]
    }
}

Example of a withdrawal postback for a Esewa Manual

Code Block
languagephp
themeDJango
collapsetrue
{
    "signature": "80dea4b4ac348b3362a6ae8a384bda273090d736",
    "wallet_type": "esewa_ml",
    "amount": 20000,
    "currency_code": "NPR",
    "label": "53999",
    "converted_amount": {"USD": 9.19, "INR": 762, "EUR": 8.4, "IDR": 139456.4, "MYR": 41.85, "VND": 218252.65, "SGD": 12.34, "THB": 319.65, "NGN": 7059.31, "TRY": 248.14, "AED": 33.76, "CAD": 12.29, "AUD": 14.01, "BDT": 1000, "AFN": 782.21, "ALL": 880.95, "AMD": 3553.15, "AOA": 7606.14, "ARS": 2556.17, "AWG": 16.57, "AZN": 15.63, "BAM": 16.41, "BBD": 18.38, "BGN": 16.42, "BHD": 3.47, "BIF": 25985.39, "BMD": 9.19, "BND": 12.32, "BOB": 63.39, "BRL": 45.21, "BSD": 9.19, "BTC": 0.00031527, "BTN": 759.15, "BWP": 123.06, "BYN": 23.16, "BZD": 18.49, "CDF": 22761.01, "CHF": 8.07, "CLF": 0.28, "CLP": 7825.36, "CNH": 66.09, "CNY": 66.01, "COP": 37354.96, "CRC": 4997.9, "CUC": 9.19, "CUP": 236.69, "CVE": 925.13, "CZK": 203.57, "DJF": 1633.46, "DKK": 62.6, "DOP": 518.16, "DZD": 1249.8, "EGP": 284.5, "ERN": 137.88, "ETB": 503.71, "FJD": 20.82, "FKP": 7.24, "GBP": 7.24, "GEL": 23.94, "GGP": 7.24, "GHS": 102.53, "GIP": 7.24, "GMD": 555.18, "GNF": 78901.88, "GTQ": 72.13, "GYD": 1919.37, "HKD": 71.77, "HNL": 225.63, "HRK": 63.29, "HTG": 1256.82, "HUF": 3290.49, "ILS": 33.88, "IMP": 7.24, "IQD": 12017.81, "IRR": 388924.19, "ISK": 1215.7, "JEP": 7.24, "JMD": 1419.83, "JOD": 6.51, "JPY": 1311.31, "KES": 1314.41, "KGS": 806.76, "KHR": 37931.08, "KMF": 4134.66, "KPW": 8272.54, "KRW": 12026.76, "KWD": 2.83, "KYD": 7.64, "KZT": 4085.16, "LAK": 178275.46, "LBP": 137706.07, "LKR": 2935.82, "LRD": 1714.25, "LSL": 170.49, "LYD": 44.17, "MAD": 90.83, "MDL": 161.83, "MGA": 40949.06, "MKD": 516.95, "MMK": 19265.17, "MNT": 31711.4, "MOP": 73.76, "MRO": 0, "MRU": 347.91, "MUR": 415.74, "MVR": 141.09, "MWK": 9637.55, "MXN": 159.13, "MZN": 587.12, "NAD": 171.88, "NIO": 335.77, "NOK": 93.87, "NPR": 1214.64, "NZD": 15.12, "OMR": 3.54, "PAB": 9.19, "PEN": 33.46, "PGK": 33.33, "PHP": 512.31, "PKR": 2646.06, "PLN": 37.35, "PYG": 66768.73, "QAR": 33.47, "RON": 41.61, "RSD": 985.18, "RUB": 872.02, "RWF": 10882.98, "SAR": 34.48, "SBD": 76.92, "SCR": 121.87, "SDG": 5528.81, "SEK": 98.37, "SHP": 7.24, "SLL": 192745.54, "SOS": 5224.43, "SRD": 352.64, "SSP": 1197.31, "STD": 204807.82, "STN": 208.19, "SVC": 80.28, "SYP": 23094.44, "SZL": 170.64, "TJS": 100.59, "TMT": 32.17, "TND": 28.36, "TOP": 21.78, "TTD": 62.19, "TWD": 291.36, "TZS": 22933.31, "UAH": 338.83, "UGX": 33073.3, "UYU": 344.16, "UZS": 107221.29, "VEF": 0, "VES": 273.17, "VUV": 1091.26, "WST": 24.99, "XAF": 5511.18, "XAG": 0.39, "XAU": 0, "XCD": 24.84, "XDR": 6.83, "XOF": 5511.18, "XPD": 0.01, "XPF": 1002.59, "XPT": 0.01, "YER": 2301.14, "ZAR": 171.84, "ZMW": 176.38, "ZWL": 2959.73, "ETH": 0.00501297, "LTC": 0.11098363, "DOGE": 123.99061787, "DASH": 0.29568477, "BCH": 0.04051484, "ZEC": 0.31233151, "ETC": 0.51252969, "XRP": 13.94632462, "TRX": 118.36066918, "XLM": 65.99332558, "WAVES": 4.94463261, "USDT": 9.20218423, "USDTTRC20": 0, "USDT20": 0},
    "direction": "outgoing",
    "created_datetime": "2023-08-04 09:13:00",
    "access_key": "FQ9jMwrNSkFbyMNqYFf6Ed4xeKmjHK",
    "additional_data": [
        {
            "activated_datetime": "",
            "exchanger_identifier": "",
            "comment": "",
            "amount": "20000",
            "currency_code": "NPR",
            "wallet_type": "esewa_ml",
            "stockpiling_id": null,
            "transaction_id": "",
            "transaction_type": null,
            "plugin_custom_order_id": "",
            "withdrawal_id": "10319",
            "withdrawal_status": 1,
            "account_number": "9805382784",
            "account_name": "",
            "account_email": "[email protected]",
            "bank_details": {
                "bank_code": null,
                "branch_code": null
            }
        }
    ]
}


Warning

The Paykassma server is waiting for a response in json {"status": "ok"} response code 200, otherwise, when receiving a different response, Paykassma will forward the postback with a certain frequency.
Repeated postbacks must also be answered with {"status":"ok"} response code 200.

После обработки вывода, Paykassma пришлет постбек о результате вывода со статусом, подписанный сигнатурой.

Withdrawal statuses

1SUCCESSStatus for withdrawal when the withdrawal request has been successfully processed.
5FAILStatus for withdrawal when the withdrawal request was rejected.

Creating withdrawal request in Paykassma BO

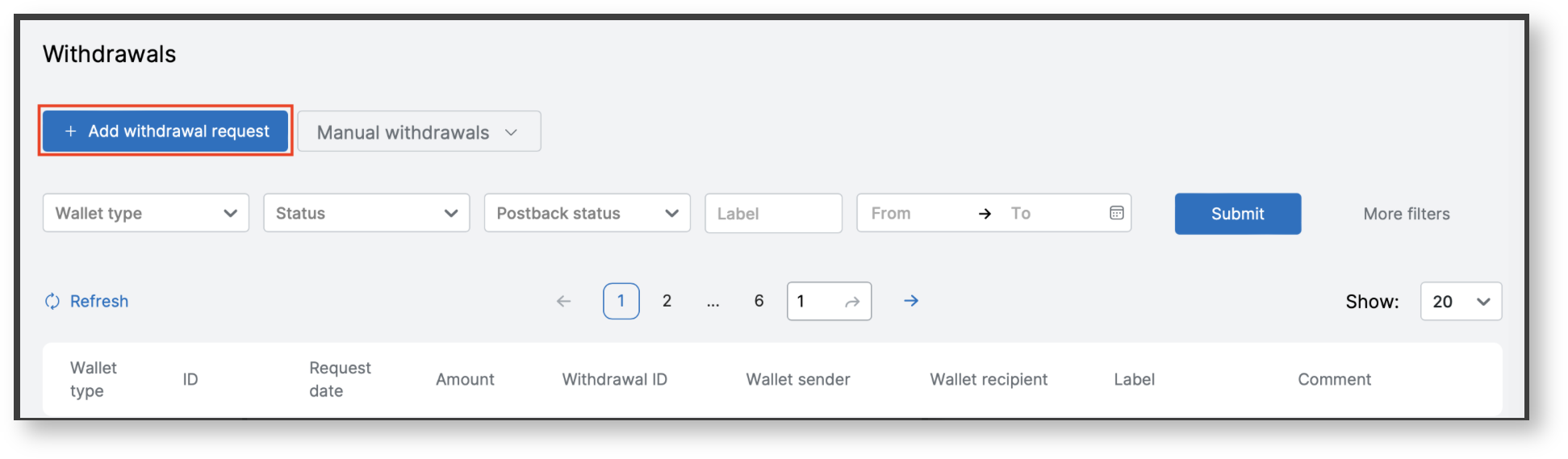

To create a withdrawal request, you need to go to the Withdrawals pagePayments  → Withdrawals and perform the following steps

  1. Press the button "Add withdrawal request".

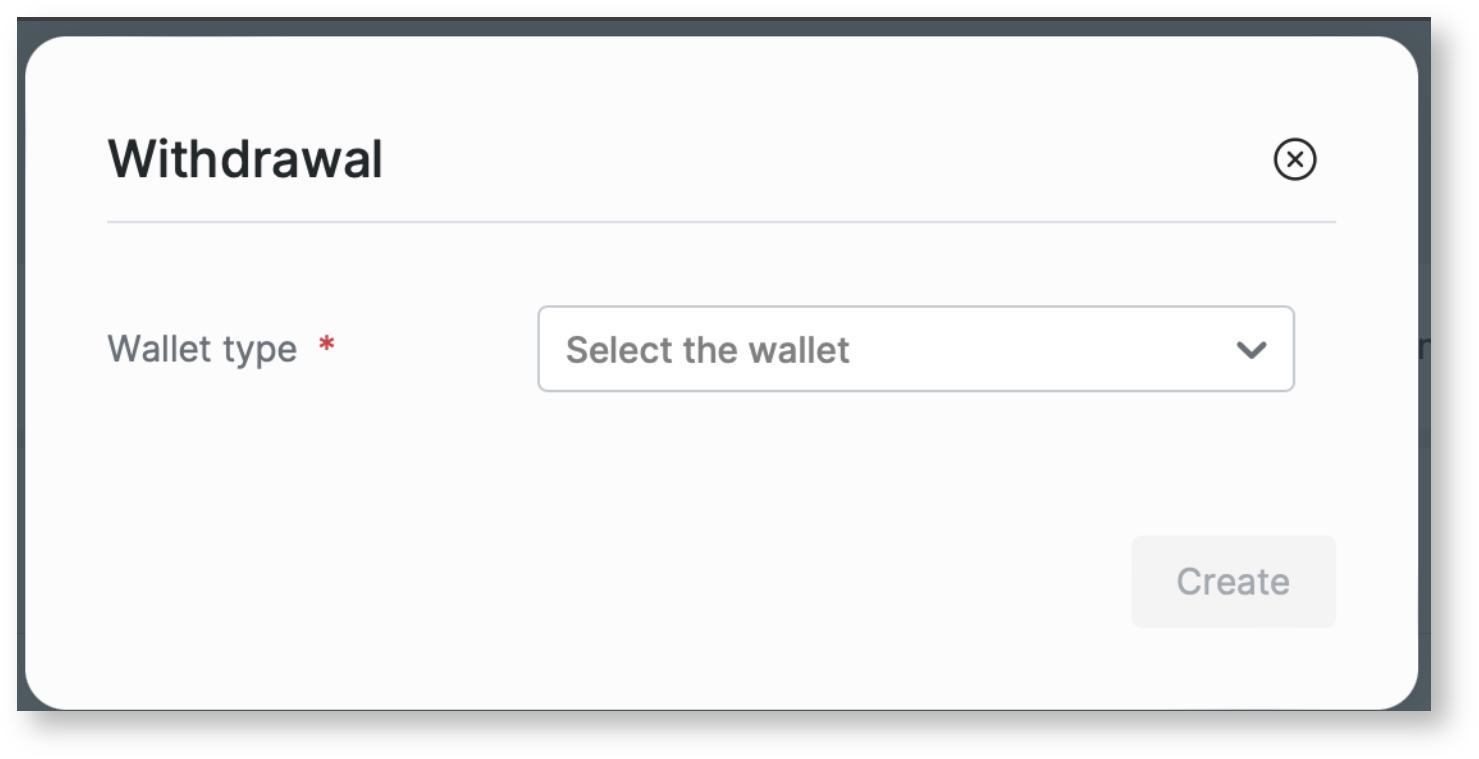

  2. Select payment system from list.

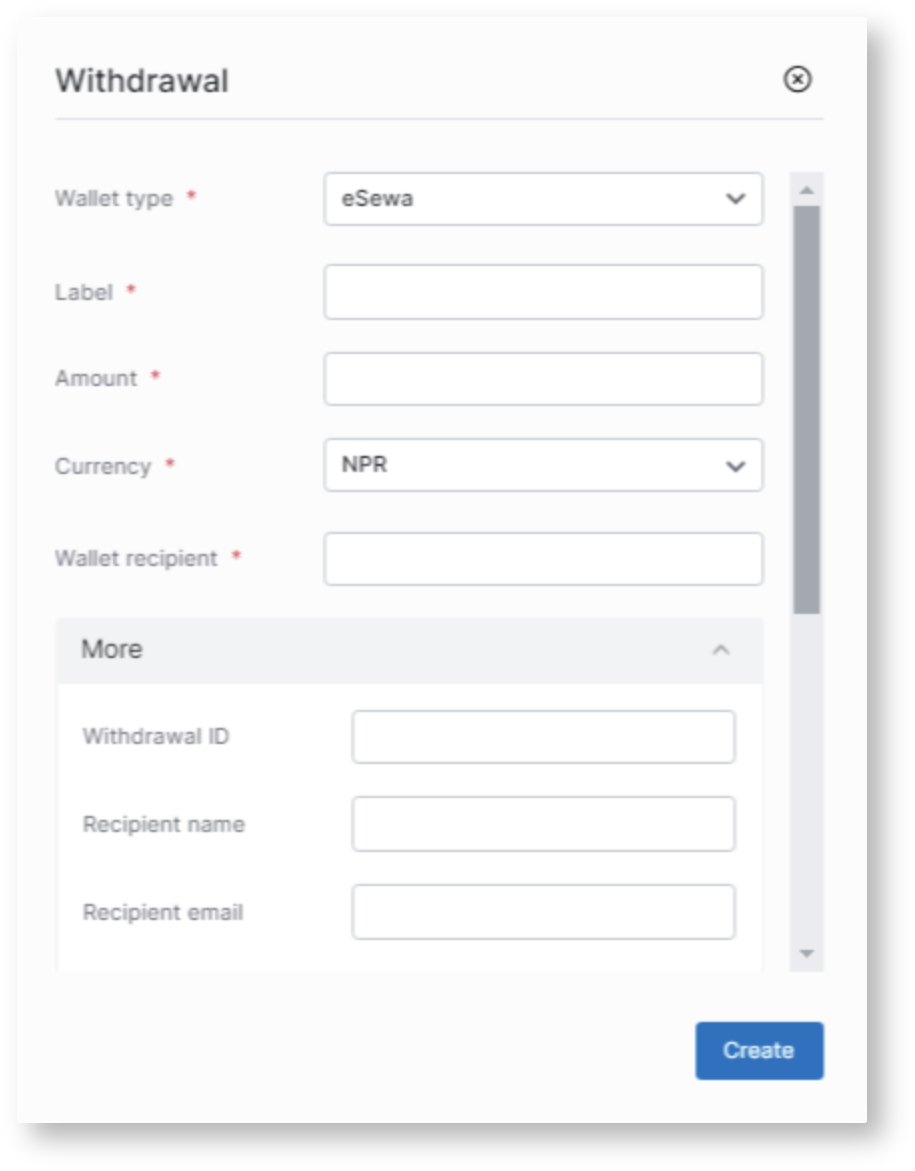

  3. Fill in the fields to create the request in the next window(the list of fields is standardized and not all fields are required. To create a request for a specific PS, you should fill in the required fields for this PS).
    Required fields for Esewa Manual withdrawal:
    - Label (user ID);
    - Amount;
    - Currency;
    - Wallet recipient.

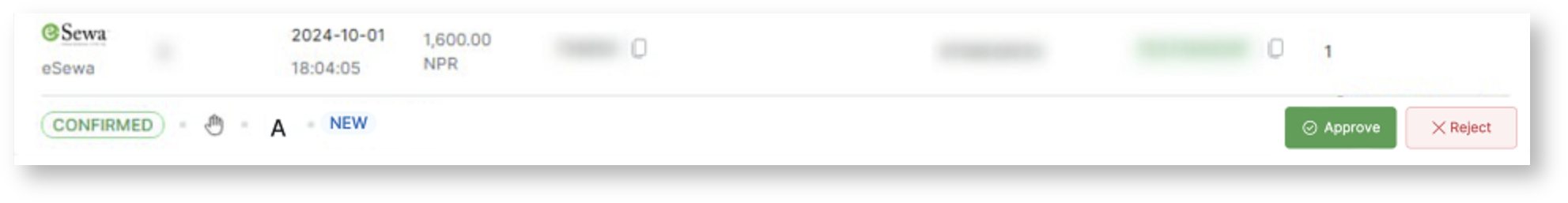

    4. After payment the withdrawal status will change.


    Paykassma does not send postback for withdrawals created manually.
