Payment
- The user is provided with wallet details to which payment must be made.
- The user makes a payment in their wallet app and receives a unique transaction number.
- Next, the user enters a unique transaction number in the payment window, after which the transaction is activated.
- Paykassma sends a postback to the merchant's side.
- Funds are credited to the user’s balance on the merchant platform.
Payment window integration (plugin)
Example of a link to open a bKash payment window:
https://plugin.{server_URL}/? label=label |
---|
Code Block |
---|
wallet_type=bkash currency_code=BDT Available languages (lang): en, bn |
Info |
---|
Pay attention to the description of the parameters payment_url_success_id / payment_url_fail_id/ payment_url_pending_id and success_url / fail_url / pending_url. |
For the description of all the plug-in parameters click here.
API integration
Creating payment
URL: https://api.{server_URL}/api/v1/transaction/create/bkash?secret={pluginapi_secret}
At this stage, we provide the details of the wallet to which the user must make a payment.
Request method:
POST
Format:
JSON
Parameters:
Name | Type | Required | Max Length | Description |
currency | string | yes | 3 | Currency code. |
label | string | yes | 190 | The unique identifier (ID) of the user who makes the payment. |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ 'currency': 'BDT', 'label': 'eligendi' } |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "status": "ok", "params": { "identifier": "324342342", "account_type": "personal" //Wallet account type. Possible values: agent - agent account, personal - personal account, merchant - merchant account } } |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ 'status': 'fail', 'message': 'MESSAGE' } |
Payment type for bKash account types

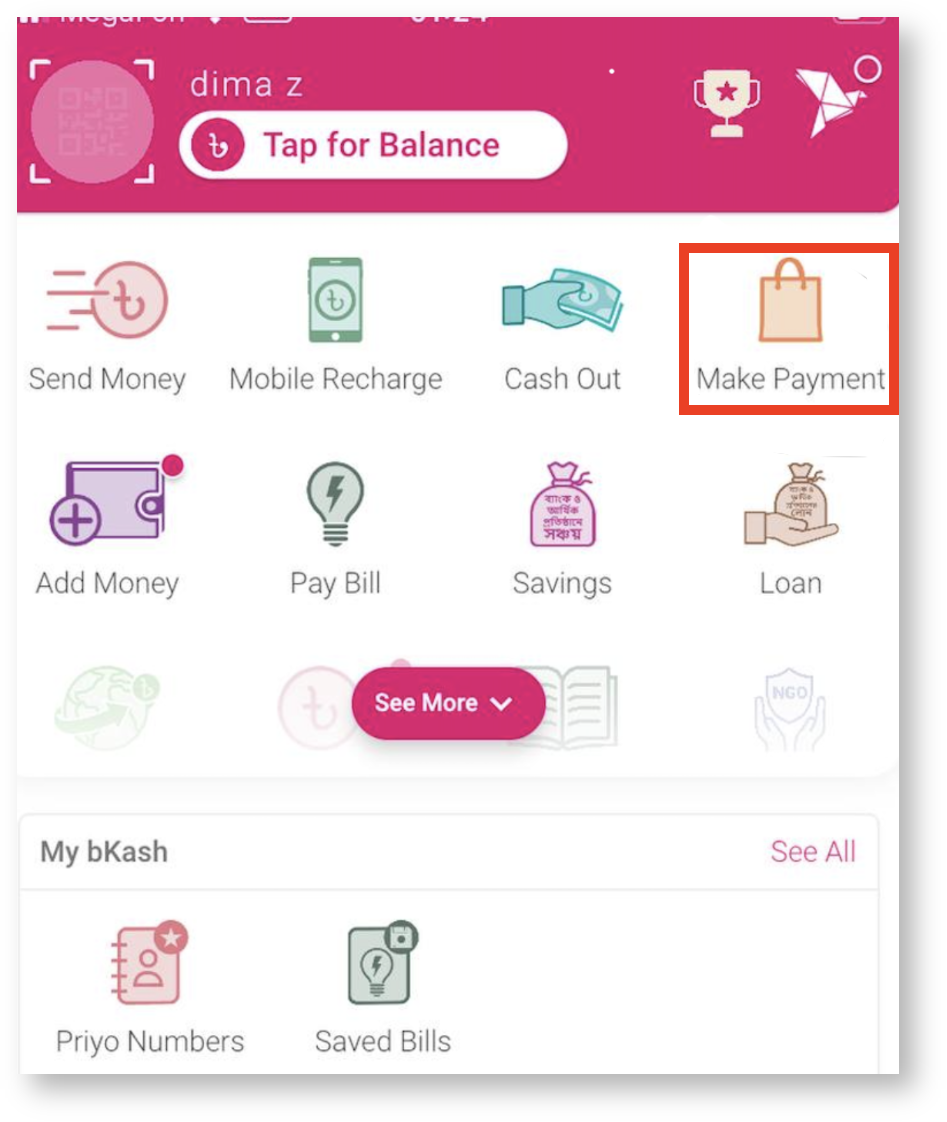

The user goes to the bKash service and makes payments there depending on the account type of the provided wallet.
To a personal account: via "Send money".
To an agent account: via "Cash out".
To merchant account: via "Make Payment".
Activation request
URL: http://api.{server_URL}/api/v1/transaction/activate?secret={pluginapi_secret}
At this stage, the user sends the transaction number, which you send to Paykassma for activation.
Request method:
POST
Format:
JSON
Parameters:
Name | Type | Required | Max Length | Description | ||
currency_code | string | yes | 3 | Currency code. | ||
wallet_type | string | yes | 190 | Method (Payment system). | ||
label | string | yes | 190 | The unique identifier (ID) of the user who makes the payment. | ||
key1 | string | yes | 190 | Transaction ID, received from the user.
| ||
amount | float | yes | 256 | Amount of transaction. | ||
custom_transaction_id | string | yes | 190 | Transaction ID in the Client's system. Must be unique. |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "currency_code": "BDT", "wallet_type": "bkash", "label": "55", "amount": 500, "key1": "AAD6DHSAVC", "custom_transaction_id": "123465477897" } |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "status": "ok", "deposit": true, "deposit_amount": 500, "currency": { "code": "BDT", "symbol": "BDT" } } |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "status": "pending", "message": "The deposit status check has been started. The operation may take longer than expected. Upon completion of the verification, the funds will be credited to your account" } |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "status": "possible_transaction_created", "message": "Transaction not found. Possible transaction created" } |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{
'status': 'fail',
'message': 'MESSAGE'
} |
Deposit postback
For the general documentation on post backs click here.
Example of a deposit postback for bKash
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "signature": "35e54262246adeafd4694e767557945827339a7f", "wallet_type": "bkash", "amount": 500, "currency_code": "BDT", "label": "7848747947846", "converted_amount": {"USD": 4.61,"INR": 380, "EUR": 4.2, "IDR": 69702.53, "MYR": 20.81, "VND": 109100.85, "SGD": 6.15, "THB": 158.07, "NGN": 3549.74, "TRY": 124.18, "AED": 16.92, "CAD": 6.11, "AUD": 6.96, "BDT": 500, "AFN": 392.19, "ALL": 427.25, "AMD": 1778.42, "AOA": 3803.37, "ARS": 1271.54, "AWG": 8.3, "AZN": 7.83, "BAM": 8.2, "BBD": 9.21, "BGN": 8.21, "BHD": 1.74, "BIF": 13046.47, "BMD": 4.61, "BND": 6.15, "BOB": 31.84, "BRL": 21.99, "BSD": 4.61, "BTC": 0.00015943, "BTN": 379, "BWP": 60.54, "BYN": 11.63, "BZD": 9.29, "CDF": 11425.29, "CHF": 4.04, "CLF": 0.14, "CLP": 3878.55, "CNH": 33.06, "CNY": 33.02, "COP": 18082.75, "CRC": 2498.95, "CUC": 4.61, "CUP": 118.58, "CVE": 462.56, "CZK": 100.38, "DJF": 820.28, "DKK": 31.27, "DOP": 259.16, "DZD": 624.77, "EGP": 142.3, "ERN": 69.08, "ETB": 253.82, "FJD": 10.22, "FKP": 3.6, "GBP": 3.6, "GEL": 11.9, "GGP": 3.6, "GHS": 52.22, "GIP": 3.6, "GMD": 276.31, "GNF": 39634.5, "GTQ": 36.22, "GYD": 963.87, "HKD": 35.89, "HNL": 113.34, "HRK": 31.62, "HTG": 628.87, "HUF": 1633.77, "ILS": 16.76, "IMP": 3.6, "IQD": 6035.32, "IRR": 194797.68, "ISK": 605.39, "JEP": 3.6, "JMD": 711.75, "JOD": 3.26, "JPY": 659.33, "KES": 657.15, "KGS": 404.25, "KHR": 19027.89, "KMF": 2061.95, "KPW": 4144.63, "KRW": 5933.82, "KWD": 1.42, "KYD": 3.84, "KZT": 2047.77, "LAK": 89252.61, "LBP": 69151.38, "LKR": 1469.64, "LRD": 858.4, "LSL": 81.95, "LYD": 22.02, "MAD": 45.38, "MDL": 82.35, "MGA": 20777.32, "MKD": 258.57, "MMK": 9674.75, "MNT": 15887.75, "MOP": 36.98, "MRO": 0, "MRU": 175.52, "MUR": 208.15, "MVR": 70.69, "MWK": 4853.1, "MXN": 77.35, "MZN": 293.46, "NAD": 82.25, "NIO": 168.55, "NOK": 47.01, "NPR": 606.4, "NZD": 7.49, "OMR": 1.77, "PAB": 4.61, "PEN": 16.61, "PGK": 16.59, "PHP": 252.72, "PKR": 1324.8, "PLN": 18.6, "PYG": 33513, "QAR": 16.79, "RON": 20.69, "RSD": 492.16, "RUB": 424.19, "RWF": 5413.13, "SAR": 17.28, "SBD": 38.44, "SCR": 61.28, "SDG": 2770, "SEK": 48.85, "SHP": 3.6, "SLL": 96567.61, "SOS": 2623.48, "SRD": 177.86, "SSP": 599.87, "STD": 102610.94, "STN": 102.67, "SVC": 40.31, "SYP": 11570.57, "SZL": 81.89, "TJS": 50.47, "TMT": 16.16, "TND": 14.19, "TOP": 10.82, "TTD": 31.29, "TWD": 145.48, "TZS": 11319.27, "UAH": 170.14, "UGX": 16716.57, "UYU": 173.55, "UZS": 53595.22, "VEF": 0, "VES": 135.74, "VUV": 546.73, "WST": 12.52, "XAF": 2752.15, "XAG": 0.19, "XAU": 0, "XCD": 12.45, "XDR": 3.43, "XOF": 2752.15, "XPD": 0, "XPF": 500.67, "XPT": 0, "YER": 1152.67, "ZAR": 83.54, "ZMW": 87.42, "ZWL": 1482.86, "ETH": 0.00251358, "LTC": 0.05065982, "DOGE": 59.80674641, "DASH": 0.14777208, "BCH": 0.01902045, "ZEC": 0.15475058, "ETC": 0.25289799, "XRP": 6.67674578, "TRX": 59.03020283, "XLM": 31.08030456, "WAVES": 2.42673726, "USDT": 4.60787289, "USDTTRC20": 0, "USDT20": 0}, "direction": "ingoing", "created_datetime": "2023-08-01 13:37:42", "access_key": "FQ9jMwrNSkFbyMNqYFf6Ed4xeKmjHK", "additional_data": [ { "activated_datetime": "2023-08-01 16:37:16", "exchanger_identifier": null, "comment": "", "amount": "100", "currency_code": "BDT", "wallet_type": "bkash", "stockpiling_id": 963, "transaction_id": "CD0C06E08D", "transaction_type": 1, "plugin_custom_order_id": null, "withdrawal_id": null, "withdrawal_status": null, "account_number": "", "account_name": "", "account_email": "", "bank_details": { "bank_code": "", "branch_code": "" } }, { "activated_datetime": "2023-08-01 16:37:40", "exchanger_identifier": null, "comment": "", "amount": "400", "currency_code": "BDT", "wallet_type": "bkash", "stockpiling_id": 963, "transaction_id": "5750E9FBB3", "transaction_type": 1, "plugin_custom_order_id": null, "withdrawal_id": null, "withdrawal_status": null, "account_number": "", "account_name": "", "account_email": "", "bank_details": { "bank_code": "", "branch_code": "" } } ] } |
Warning |
---|
The Paykassma server is waiting for a response in json {"status": "ok"} response code 200, otherwise, when receiving a different response, Paykassma will forward the postback with a certain frequency. |
Withdrawals for users
For the general documentation on the withdrawals of funds click here.
Withdrawal request
URL: https://api.{server_URL}/v2/withdrawal/create
Request method:
POST
Format:
JSON
Parameters:
Name | Type | Required | Description |
withdrawal_id | string(1-36) | yes | Withdrawal ID, if the parameter is not passed, then the system generates withdrawal _id. |
payment_system | string | yes | Payment system. |
amount | int | required | Additional requirements:
|
currency_code | string(3) | yes | Currency code. |
is_test | boolean | yes | The is_test parameter possible values:
|
label | string(1-36) | yes | The unique identifier (ID) of the user who makes the payment. |
account_email | string | yes | Email of the account holder. |
account_number | string | yes | bKash account number. 11 digts, example "01XXXXXXXXX". |
signature | string | yes | Signature generated with private_key. |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "withdrawal_id": "af84c26f-931d-4c28-a30d-7b75e46b7685", "payment_system": "bkash", "amount": 6000, "currency_code": "BDT", "is_test": true, "label": "c81594cc-e4b1-4ed5-914c-3817f2ccf13a", "account_email": "[email protected]", "account_number": "01642234663", "signature": "98565041a9e126d325e864da0ba3d467f6ab0566" } |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "status": "ok", } |
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ 'status': 'fail', 'message': 'MESSAGE' } |
*If, when trying to create a withdrawal request, the amount of account balances in the currency of the request is less than the total amount of new and still incomplete applications, the error message"Insufficient balance" will be displayed (to configure this functionality, contact the TP Paykassma).
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "status": "fail", "message": { "withdrawals_sum_amount": [ "Insufficient balance" ] } } |
Example of a postback for a bKash withdrawal
Code Block | ||||||
---|---|---|---|---|---|---|
| ||||||
{ "signature": "80dea4b4ac348b3362a6ae8a384bda273090d736", "wallet_type": "bkash", "amount": 1000, "currency_code": "BDT", "label": "53999", "converted_amount": {"USD": 9.19, "INR": 762, "EUR": 8.4, "IDR": 139456.4, "MYR": 41.85, "VND": 218252.65, "SGD": 12.34, "THB": 319.65, "NGN": 7059.31, "TRY": 248.14, "AED": 33.76, "CAD": 12.29, "AUD": 14.01, "BDT": 1000, "AFN": 782.21, "ALL": 880.95, "AMD": 3553.15, "AOA": 7606.14, "ARS": 2556.17, "AWG": 16.57, "AZN": 15.63, "BAM": 16.41, "BBD": 18.38, "BGN": 16.42, "BHD": 3.47, "BIF": 25985.39, "BMD": 9.19, "BND": 12.32, "BOB": 63.39, "BRL": 45.21, "BSD": 9.19, "BTC": 0.00031527, "BTN": 759.15, "BWP": 123.06, "BYN": 23.16, "BZD": 18.49, "CDF": 22761.01, "CHF": 8.07, "CLF": 0.28, "CLP": 7825.36, "CNH": 66.09, "CNY": 66.01, "COP": 37354.96, "CRC": 4997.9, "CUC": 9.19, "CUP": 236.69, "CVE": 925.13, "CZK": 203.57, "DJF": 1633.46, "DKK": 62.6, "DOP": 518.16, "DZD": 1249.8, "EGP": 284.5, "ERN": 137.88, "ETB": 503.71, "FJD": 20.82, "FKP": 7.24, "GBP": 7.24, "GEL": 23.94, "GGP": 7.24, "GHS": 102.53, "GIP": 7.24, "GMD": 555.18, "GNF": 78901.88, "GTQ": 72.13, "GYD": 1919.37, "HKD": 71.77, "HNL": 225.63, "HRK": 63.29, "HTG": 1256.82, "HUF": 3290.49, "ILS": 33.88, "IMP": 7.24, "IQD": 12017.81, "IRR": 388924.19, "ISK": 1215.7, "JEP": 7.24, "JMD": 1419.83, "JOD": 6.51, "JPY": 1311.31, "KES": 1314.41, "KGS": 806.76, "KHR": 37931.08, "KMF": 4134.66, "KPW": 8272.54, "KRW": 12026.76, "KWD": 2.83, "KYD": 7.64, "KZT": 4085.16, "LAK": 178275.46, "LBP": 137706.07, "LKR": 2935.82, "LRD": 1714.25, "LSL": 170.49, "LYD": 44.17, "MAD": 90.83, "MDL": 161.83, "MGA": 40949.06, "MKD": 516.95, "MMK": 19265.17, "MNT": 31711.4, "MOP": 73.76, "MRO": 0, "MRU": 347.91, "MUR": 415.74, "MVR": 141.09, "MWK": 9637.55, "MXN": 159.13, "MZN": 587.12, "NAD": 171.88, "NIO": 335.77, "NOK": 93.87, "NPR": 1214.64, "NZD": 15.12, "OMR": 3.54, "PAB": 9.19, "PEN": 33.46, "PGK": 33.33, "PHP": 512.31, "PKR": 2646.06, "PLN": 37.35, "PYG": 66768.73, "QAR": 33.47, "RON": 41.61, "RSD": 985.18, "RUB": 872.02, "RWF": 10882.98, "SAR": 34.48, "SBD": 76.92, "SCR": 121.87, "SDG": 5528.81, "SEK": 98.37, "SHP": 7.24, "SLL": 192745.54, "SOS": 5224.43, "SRD": 352.64, "SSP": 1197.31, "STD": 204807.82, "STN": 208.19, "SVC": 80.28, "SYP": 23094.44, "SZL": 170.64, "TJS": 100.59, "TMT": 32.17, "TND": 28.36, "TOP": 21.78, "TTD": 62.19, "TWD": 291.36, "TZS": 22933.31, "UAH": 338.83, "UGX": 33073.3, "UYU": 344.16, "UZS": 107221.29, "VEF": 0, "VES": 273.17, "VUV": 1091.26, "WST": 24.99, "XAF": 5511.18, "XAG": 0.39, "XAU": 0, "XCD": 24.84, "XDR": 6.83, "XOF": 5511.18, "XPD": 0.01, "XPF": 1002.59, "XPT": 0.01, "YER": 2301.14, "ZAR": 171.84, "ZMW": 176.38, "ZWL": 2959.73, "ETH": 0.00501297, "LTC": 0.11098363, "DOGE": 123.99061787, "DASH": 0.29568477, "BCH": 0.04051484, "ZEC": 0.31233151, "ETC": 0.51252969, "XRP": 13.94632462, "TRX": 118.36066918, "XLM": 65.99332558, "WAVES": 4.94463261, "USDT": 9.20218423, "USDTTRC20": 0, "USDT20": 0}, "direction": "outgoing", "created_datetime": "2023-08-04 09:13:00", "access_key": "FQ9jMwrNSkFbyMNqYFf6Ed4xeKmjHK", "additional_data": [ { "activated_datetime": "", "exchanger_identifier": "", "comment": "", "amount": "1000", "currency_code": "BDT", "wallet_type": "bkash", "stockpiling_id": null, "transaction_id": "", "transaction_type": null, "plugin_custom_order_id": "", "withdrawal_id": "10319", "withdrawal_status": 1, "account_number": "56432467654", "account_name": "", "account_email": "[email protected]", "bank_details": { "bank_code": null, "branch_code": null } } ] } |
Warning |
---|
The Paykassma server is waiting for a response in json {"status": "ok"} response code 200, otherwise, when receiving a different response, Paykassma will forward the postback with a certain frequency. |
After processing the withdrawal, Paykassma will send a postback about the withdrawal result with status, signed with a signature.
Withdrawal statuses
1 | SUCCESS | Status for withdrawal when the withdrawal request has been successfully processed. |
5 | FAIL | Status for withdrawal when the withdrawal request was rejected. |
Creating withdrawal request in Paykassma BO

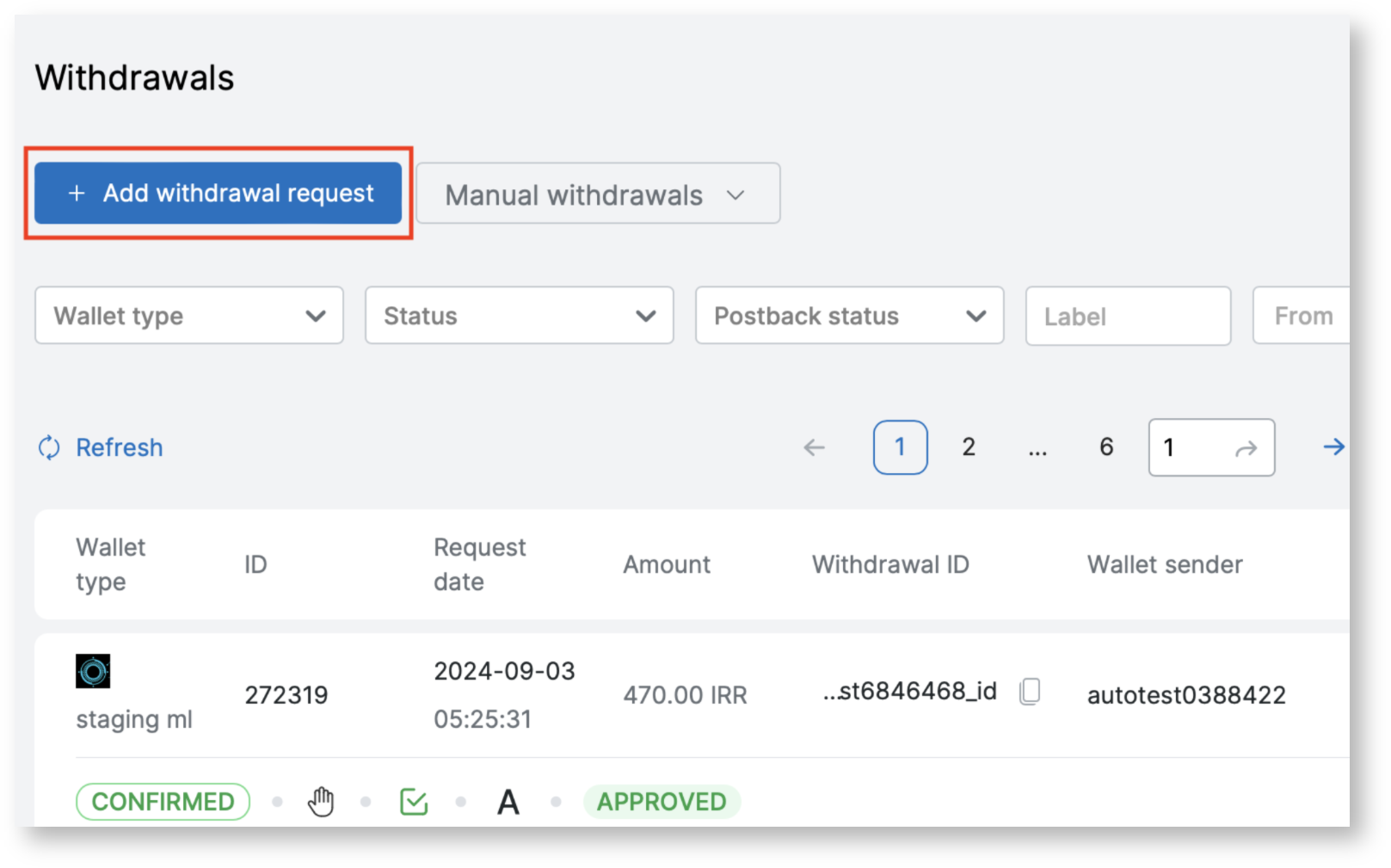

To create a withdrawal request, you need to go to the Withdrawals pagePayments → Withdrawals and perform the following steps
- Press the button "Add withdrawal request".

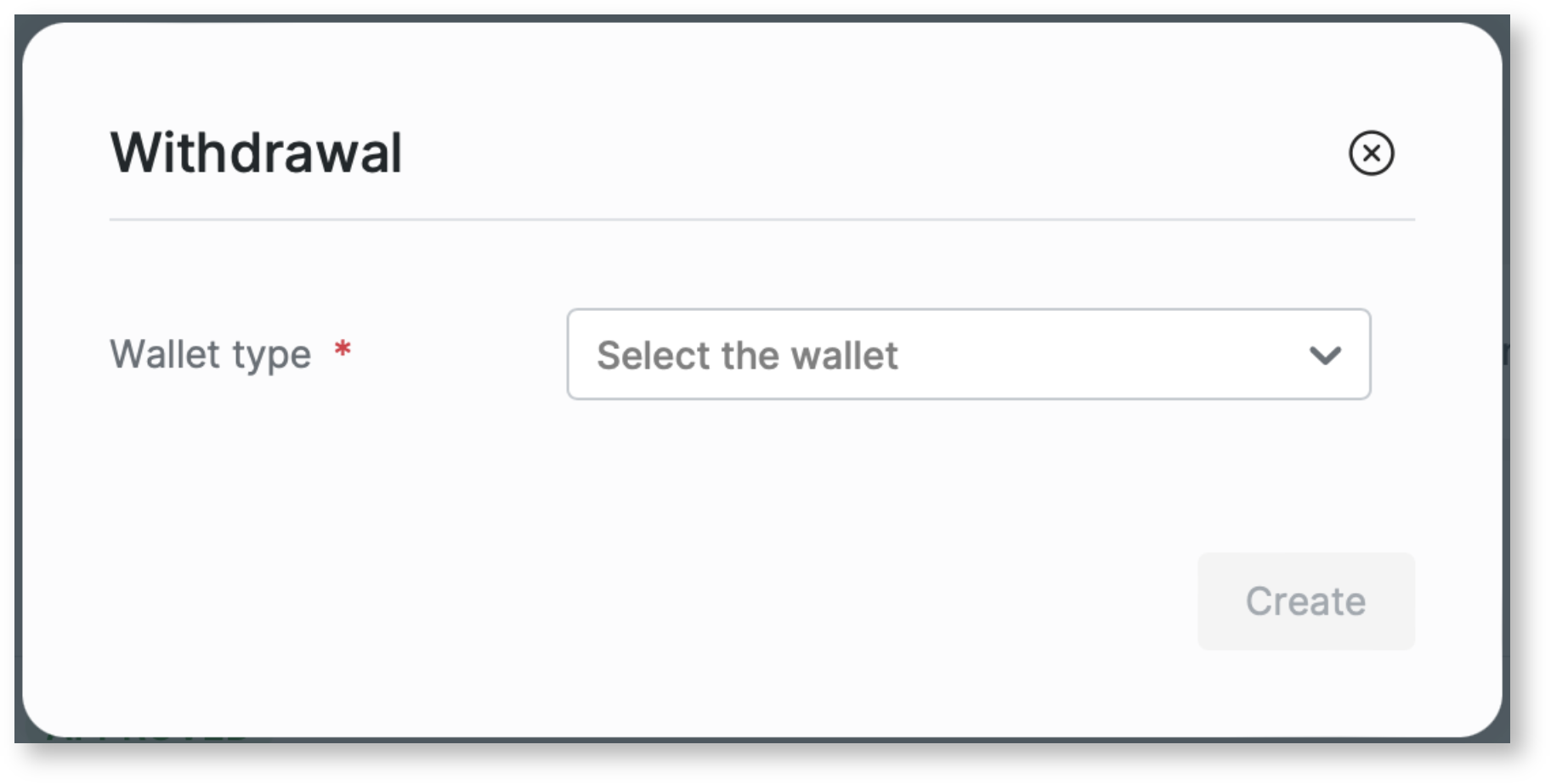

- Select payment system from list.

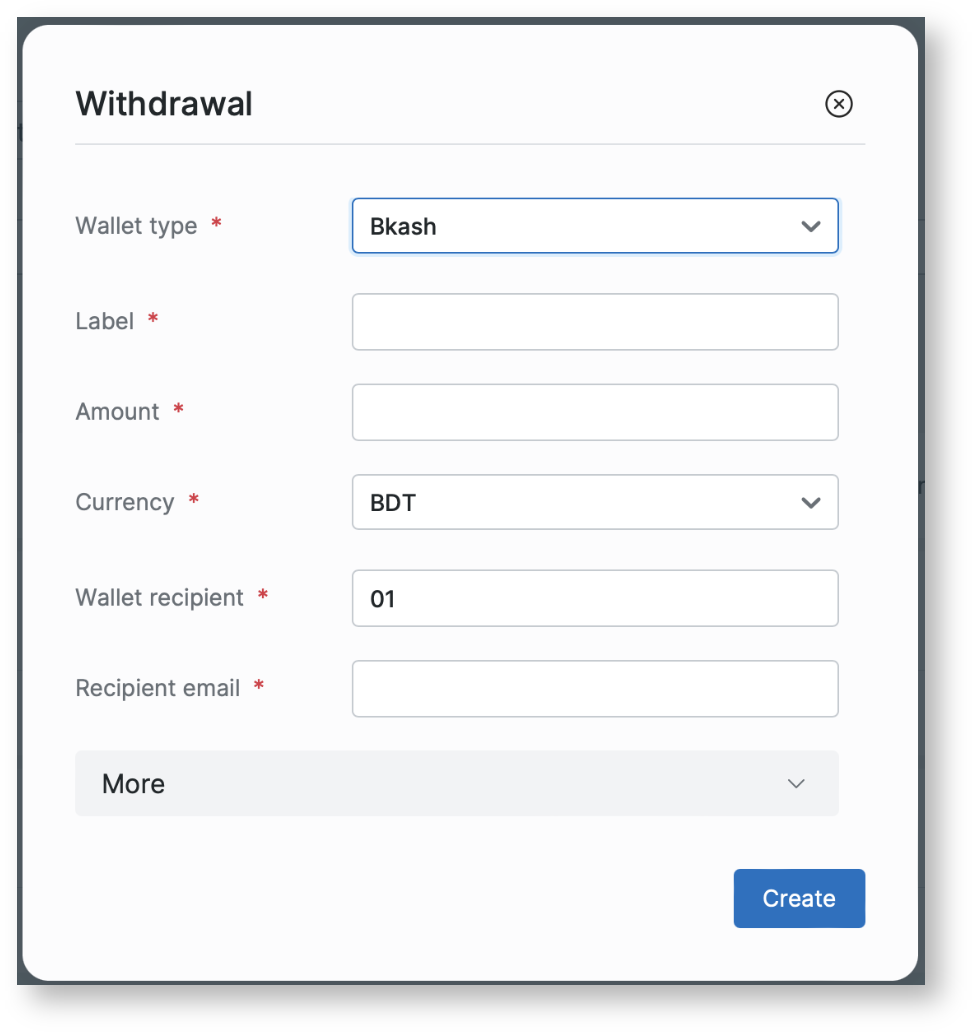

- Fill in the fields to create the request in the next window(the list of fields is standardized and not all fields are required. To create a request for a specific PS, you should fill in the required fields for this PS).
Required fields for bKash payout:
- Label (user ID)
- Amount
- Currency code
- Wallet recipient

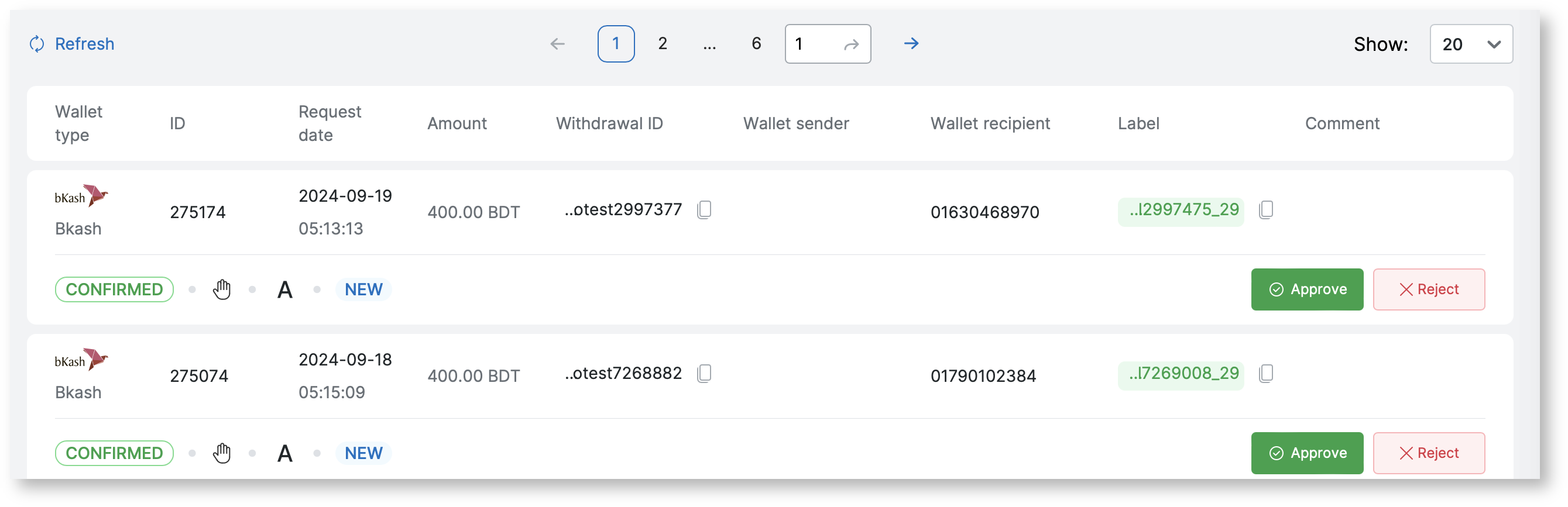

- Recipient's email - After payment the withdrawal status will change.
Paykassma does not send postback for withdrawals created manually.
